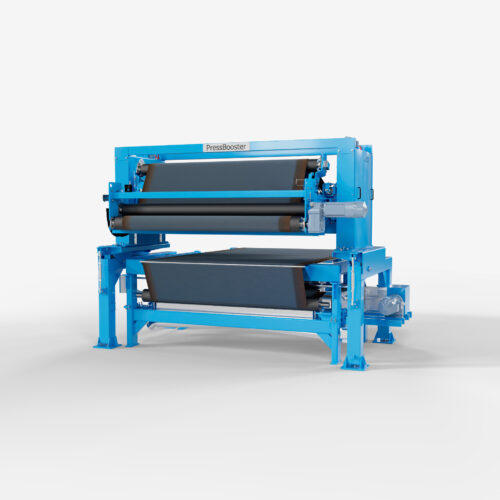

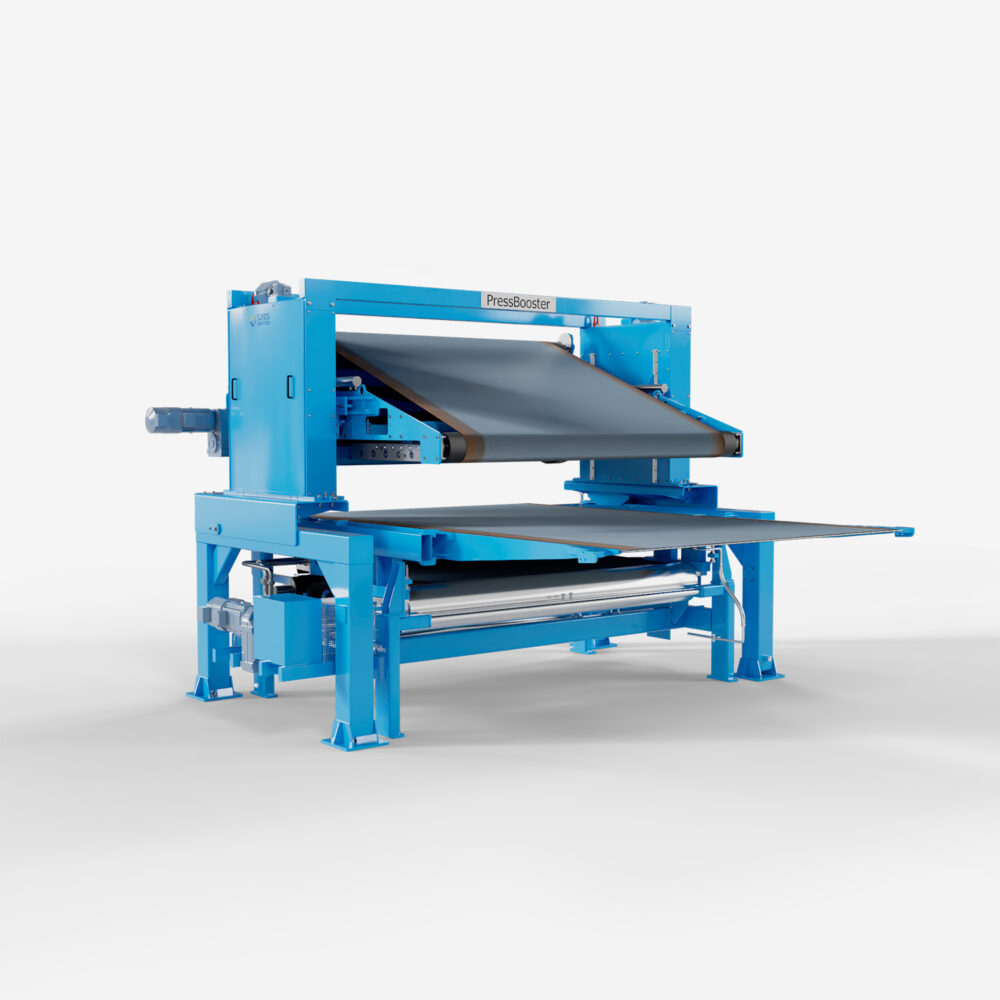

PressBooster
Forming & mat pre-heating
PressBooster is a mat pre-heating system that increases mat temperature by injecting steam directly into the mat in front of the press. This enables a higher press speed, which increases plant capacity.
- Capacity increase 10 – 30% depending on board thickness.
- Easily installed by rebuilding existing conveyor.
- Dual belt cleaning systems.
- Improved board physical properties.
- Better surface smoothness.
- Description
- Technical data
- Video/Q&A
- Related products
- Spare parts
Description
Our PressBooster has the highest efficiency on the market due to its steam injection technology (DST) and ease of installation head-to-head to the press, avoiding heat losses.

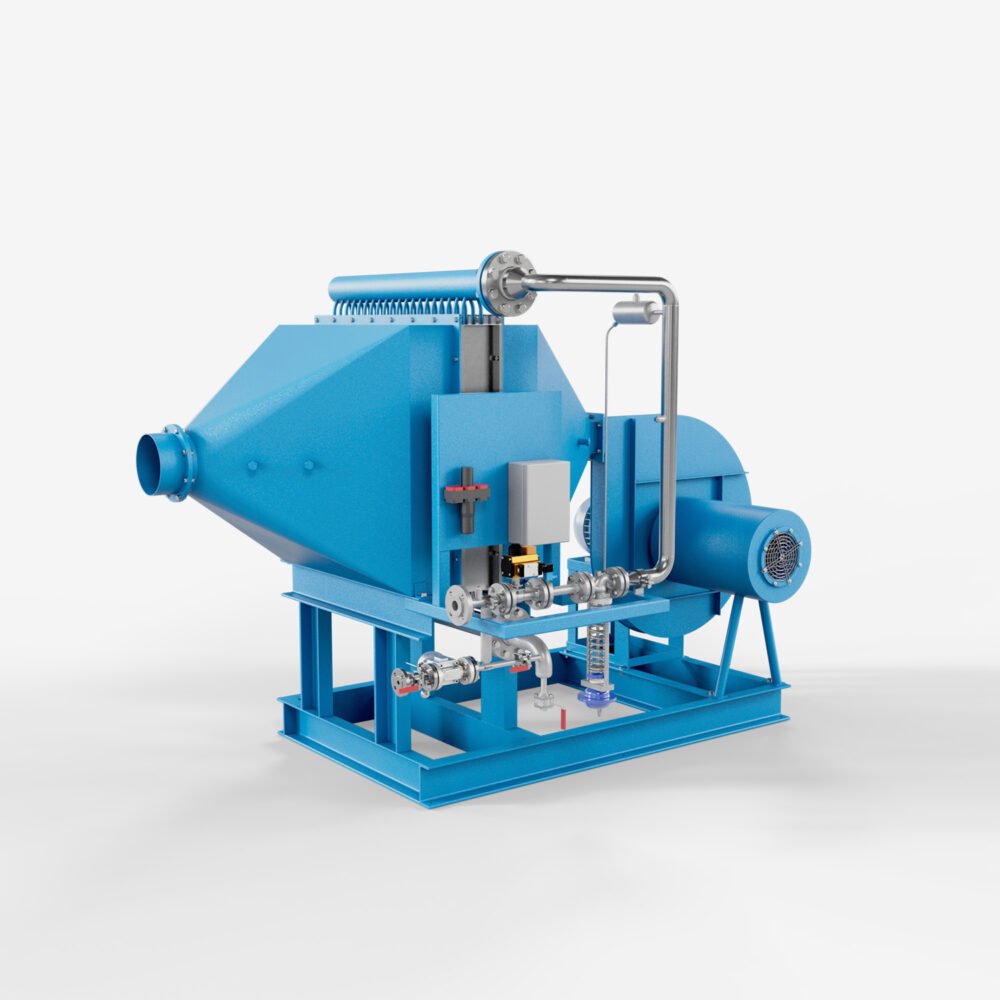

The PressBooster has been designed to inject condensate-free steam to eliminate the risk of condensate spots on the board. It is crucial to keep the wire clean and dry to have the maximum effect of steam injection. That is achieved by using a system combining hot air, air knives, and a brush.
The installation can be done during a shorter stop. By combining the mat pre-heating system with a steam saving system, EVOfuge, the steam savings from the steam used for refining will be bigger than the steam consumption for the PressBooster.
Type
Single machines
END PRODUCT
MDF, PB, OSB
TECHNOLOGY
Forming and mat pre-heating
Info |
4 feet line |
8 feet line |
|---|---|---|
| Saturated steam total consumption, max(kg/h) | 800 | 1200 |
| Saturated steam supply min. pressure (bar) | 12 | 12 |
| Compressed air consumption (l/h) | 10 | 20 |
| Compressed air pressure (bar) | 7 | 7 |
| Installation power (kW) | 18 | 18 |
Video/Q&A
PressBooster GENERATION 3
What are the new developments in the third generation PressBooster? Sunds Fibertech has carried out the following developments according to the latest technologies: New heating injection platens by using high-quality Swedish Aluminum material mixed with the use of the DFT...
MAT PREHEATER PressBooster
What alternatives are there to increase press line capacity? To increase the capacity in your press line, there are mainly two options: A press extension. With a long press, you can run it faster and maintain the time in the...
